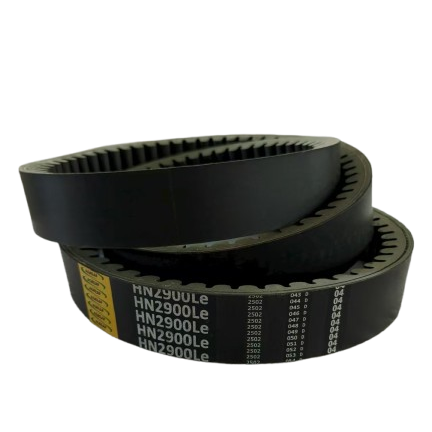

Direct Source: 26268120 Cogged V Belt for CLAAS HN2900Le with Aramid Cord
The 26268120 cogged V-belt is purpose‑built for the CLAAS combine harvester, where it must endure constant flexing and heavy shock loads. We engineer this belt from scratch in our own 95，000㎡ production complex, reinforcing it with high‑tenacity aramid cord that virtually eliminates stretching and a proprietary chloroprene compound developed in our CNAS‑accredited laboratory.
Every batch is tested to confirm it delivers the same fit and staying power as the original CLAAS part, so you can install it and confidently return to the field knowing the drive train will keep working harvest after harvest.
Marca :
Zhongliang, Liannong, Agreap, Rnupower, JDREItem nº :
HNCertificado :
ISO9001, ISO14001, ISO45001 and ISO50001Pagamento :
T/TOrigem do produto :
ChinaPorto de embarque :
Shanghai Port, Ningbo Port, Tianjin Port, Lianyungang PortTempo de espera :
15-45 working days| Section | Dimensions | Manufacturing Length Range | ||
| Top Width(mm) | Height(mm) | Min.(inch/mm) | Max.(inch/mm) | |
| HN | 57.2 | 25.0 | 78.7/2000 | 626/15900 |
What Makes It Different?
√ Aramid Cord That Refuses to Stretch: Most replacement belts use polyester cord, which gradually elongates under load and forces you to re‑tension the drive. Our belt uses parallel‑laid aramid filaments – the same material found in ballistic protection – to keep the belt dimensionally stable. Once you tension it, it stays tensioned.
√ Chloroprene Formulated for the Field: Standard rubber hardens and cracks when soaked in oil or baked by engine heat. Our lab‑developed chloroprene blend retains its flexibility from well below freezing up to high operating temperatures, and it shrugs off the abrasive dust that fills the air during harvest.
√ Cogged Profile, Cooler Running: The precision‑molded cogs on the inner circumference let the belt bend easily around the small pulleys of the drive. Less bending resistance means less internal friction, so the belt runs cooler and lasts longer – a critical advantage when the machine is running flat out.
√ Engineered Alongside the Original: Because we are a direct source supplier, we work from the same specifications as the original equipment manufacturer. The dimensions, the rubber hardness, the cord tension – everything is matched so that the belt drops into place and performs exactly as the original did when the combine was new.
Where it works?
✅ CLAAS Combine Harvester – primary and auxiliary drives
✅Any drive on a CLAAS combine that demands a cogged, high‑flex belt
✅ Applications where small pulley diameters and high cycle rates would quickly destroy a standard belt
Technical Specifications & Applications
Esta série premium de correias trapezoidais dentadas de velocidade variável HG HH HI HJ HK HM HN HO oferece aderência e flexibilidade excepcionais para maximizar a eficiência de potência em aplicações agrícolas. Ela é projetada para resistir a poeira, umidade e temperaturas extremas, garantindo uma vida útil prolongada.
LEIA MAIS
The 68x24x2600Ld cogged V belt is precision engineered as a direct aftermarket replacement for Rostselmash （Gomselmash） combine harvesters where reliable power transmission under heavy harvesting loads is non negotiable . We manufacture this belt from the ground up in our 95000 square meter production complex reinforcing it with high tenacity aramid cord that virtually eliminates stretching and a specially formulated chloroprene rubber compound developed in our CNAS accredited laboratory and protected by national patents .
LEIA MAIS
The 26268120 cogged V-belt is purpose‑built for the CLAAS combine harvester, where it must endure constant flexing and heavy shock loads. We engineer this belt from scratch in our own 95，000㎡ production complex, reinforcing it with high‑tenacity aramid cord that virtually eliminates stretching and a proprietary chloroprene compound developed in our CNAS‑accredited laboratory. Every batch is tested to confirm it delivers the same fit and staying power as the original CLAAS part, so you can install it and confidently return to the field knowing the drive train will keep working harvest after harvest.
LEIA MAIS
The 47486562 is a high-performance cogged V-belt engineered for CLAAS combine harvesters, specifically designed for the HL 2855Le drive system. Manufactured in our 95，000㎡ production base with CNAS-certified laboratory validation and backed by 90+ national patents, this belt features a high-strength aramid cord core and a specially formulated chloroprene rubber compound, delivering OEM-identical performance, exceptional durability, and direct-from-source reliability.
LEIA MAIS
A correia trapezoidal dentada (também chamada de correia trapezoidal com dentes) é uma correia de transmissão de potência que combina a seção transversal trapezoidal das correias trapezoidais clássicas com ranhuras transversais (dentes) moldadas na parte interna. Essas ranhuras reduzem a resistência à flexão, melhoram a flexibilidade e aumentam a dissipação de calor, mantendo uma alta capacidade de torque.
LEIA MAIS
A correia agrícola dentada de alta resistência é uma correia de transmissão de potência especializada, projetada para condições operacionais extremas em máquinas agrícolas. Ela combina uma superfície interna dentada (ranhuras transversais) para flexibilidade e dissipação de calor superiores, construção reforçada com elementos de tração de alta resistência e revestimentos resistentes à abrasão, além de compostos específicos para uso agrícola, que suportam desafios ambientais como poeira, umidade e exposição aos raios UV. Essas correias são projetadas para transmitir alto torque em aplicações com cargas de impacto, velocidades variáveis e operação contínua.
LEIA MAIS
As correias trapezoidais dentadas XPA, XPB, XPC e XPZ representam uma série de correias trapezoidais dentadas de alto desempenho. Sua construção garante um movimento estável e uniforme em polias ranhuradas, evitando inversão e deslizamento. O design dos dentes entalhados aumenta a flexibilidade, reduz o acúmulo de calor e permite uma operação eficiente em polias de acionamento menores.
LEIA MAIS
